NMA207-O 型圈式机械密封-宁波方力密封件有限公司

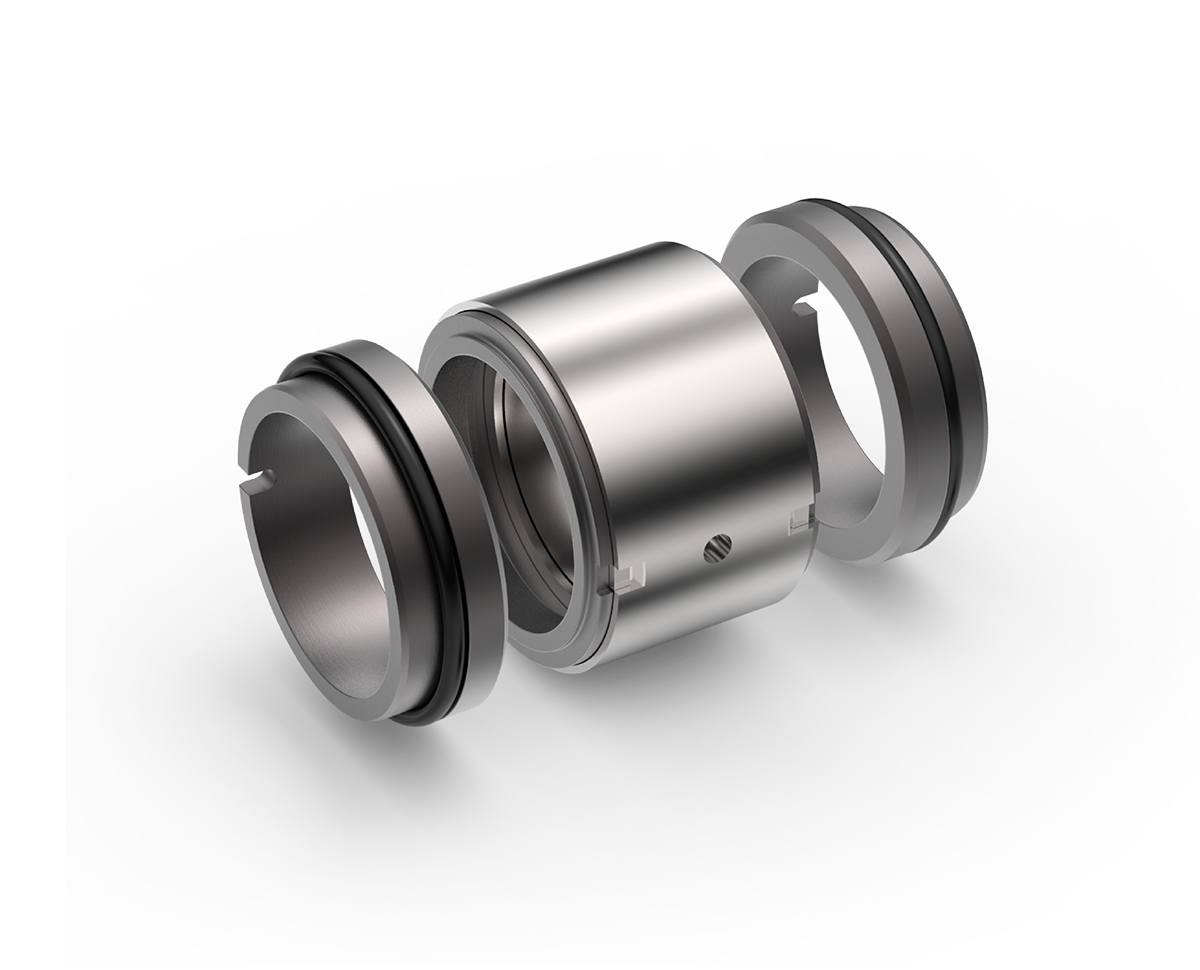

NMA207

产品简述

    ( 产品认证 )
  • 工作参数(Operating Conditions)

    温度(Temperature):-20℃~ +180℃
    压力(Pressure) :≤ 1.2MPa
    线速度(Speed) :≤ 15m/s

  • 适用介质(Applications)

    清水、污水、油及其它中等腐蚀介质
    Clean water, sewage water, oil and other moderately corrosive fluids

  • 材料(Materials)

    动环(Rotary Ring):Q1,Q2,U1,U2,F,G
    静环(Seat Ring):U2,Q1,Q2,B,A
    辅助密封(Secondary Seal):V,P,E,M1,M2
    弹簧及结构件(Spring and Metal Parts):F,G,M

  • 静环适合类型(Seat Types)

    标准(Standard):G90
    可替换(Alternative):G6,G606,G4,G13
